1D Cellular Automata

Elementary Rules and Space-Time Diagrams

Elementary cellular automata are one of the cleanest examples of emergence in a discrete system. Each cell stores a binary state, each update only depends on the three-cell neighborhood, and repeated rule application creates nontrivial large-scale patterns (Wolfram 1983).

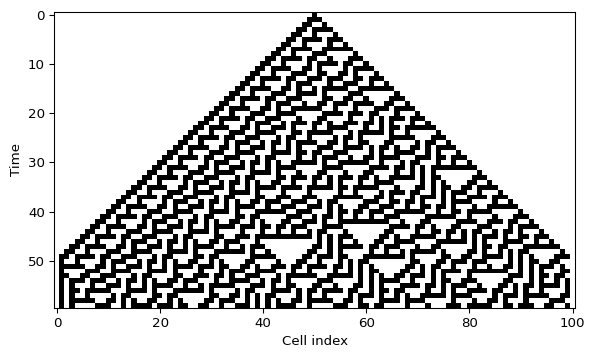

Figure 1: Rule 30 space-time diagram.

Local state and neighborhood

Let \(x_i^t \in \{0,1\}\) be the state of cell \(i\) at time \(t\). An elementary cellular automaton updates the row through a local rule

\[ x_i^{t+1} = f\big(x_{i-1}^t, x_i^t, x_{i+1}^t\big). \]

Because each neighborhood has three binary entries, there are only \(2^3 = 8\) possible patterns. A rule is therefore an 8-entry lookup table.

Encode the rule table

By convention we order the neighborhoods from 111 down to 000.

rule_number = 30
rule_bin = np.array([int(bit) for bit in f"{rule_number:08b}"])

For Rule 30 this produces the binary table 00011110, which tells us the output for each of the eight neighborhoods.

Implement the local update

def apply_rule(state, rule_bin):
    new_state = np.zeros_like(state)
    for i in range(1, len(state) - 1):
        neighborhood = state[i - 1 : i + 2]
        index = 7 - int("".join(neighborhood.astype(str)), 2)
        new_state[i] = rule_bin[index]
    return new_state
def apply_rule(state, rule_bin):
    new_state = np.zeros_like(state)
    for i in range(1, len(state) - 1):
        neighborhood = state[i - 1 : i + 2]
        index = 7 - int("".join(neighborhood.astype(str)), 2)
        new_state[i] = rule_bin[index]
    return new_state

This first version keeps the boundary cells at zero because the loop only updates indices 1 through len(state) - 2.

Simulate many time steps

Now wrap the update in a reusable simulator.

def simulate_ca(initial_state, rule_number, steps):
    rule_bin = np.array([int(bit) for bit in f"{rule_number:08b}"])
    grid = np.zeros((steps, len(initial_state)), dtype=int)
    grid[0] = initial_state

    for t in range(1, steps):
        grid[t] = apply_rule(grid[t - 1], rule_bin)

    return grid

Plot the space-time diagram

iterations = 80
grid_size = 121

initial_state = np.zeros(grid_size, dtype=int)
initial_state[grid_size // 2] = 1

grid = simulate_ca(initial_state, rule_number=30, steps=iterations)

plt.imshow(grid, cmap="binary", interpolation="nearest", aspect="auto")
plt.xlabel("Cell index")
plt.ylabel("Time")
plt.show()

Interactive initial row

The script amlab/cellular_automata/cellular.py lets you click on the first row, toggle cells, and recompute the automaton immediately. That is a good way to build intuition for how sensitive a rule is to its initial condition.

What to look for

  • Does the pattern stay symmetric or break symmetry quickly?
  • Do you see long diagonal structures, nested triangles, or irregular texture?
  • If you change one cell in the first row, does the effect stay local or spread through the whole diagram?

What’s Next?

One rule is enough to learn the mechanics. The next page turns the simulator into a small experimental lab where you compare Rule 30, Rule 90, Rule 110, and Rule 184.

Rule Exploration Back to Session Index
