Once one simulator works, the interesting question is what changes when only the local rule changes. In this lab you keep the simulator fixed and vary the rule and the initial condition.
::: {.callout-important}
## Core activity
Compare Rules 30, 90, 110 and 184 from a single seed and from a random row, and assign each to a Wolfram class ([Wolfram Classes](wolfram-classes.qmd)).
:::
## Prediction
::: {.callout-note}
## Exercise
Before you run the code, use the rule tables to predict: which of the four rules conserve the number of occupied cells? Which rule gives a pattern that is symmetric about the seed?
:::
::: {.callout-tip collapse="true"}
## Solution
Only Rule 184 conserves the number of 1s on a ring: each 1 either stays or moves one cell to the right into an empty cell. Only Rule 90 gives a symmetric pattern, because it equals its own reflection. The Validation section below checks the first claim. The chunk here checks both on a ring of 121 cells.
```{python}
from amlab.cellular_automata.elementary import random_row, simulate_eca, single_seed
for rule in (30, 90, 110, 184):
g = simulate_eca(random_row(121, 0.5, seed=7), rule, 80, boundary="periodic")
s = simulate_eca(single_seed(121), rule, 40)
conserved = bool((g.sum(axis=1) == g[0].sum()).all())
symmetric = bool((s == s[:, ::-1]).all())
print(f"Rule {rule:3d}: conserves 1s {conserved}, symmetric {symmetric}")
```
:::
```{python}

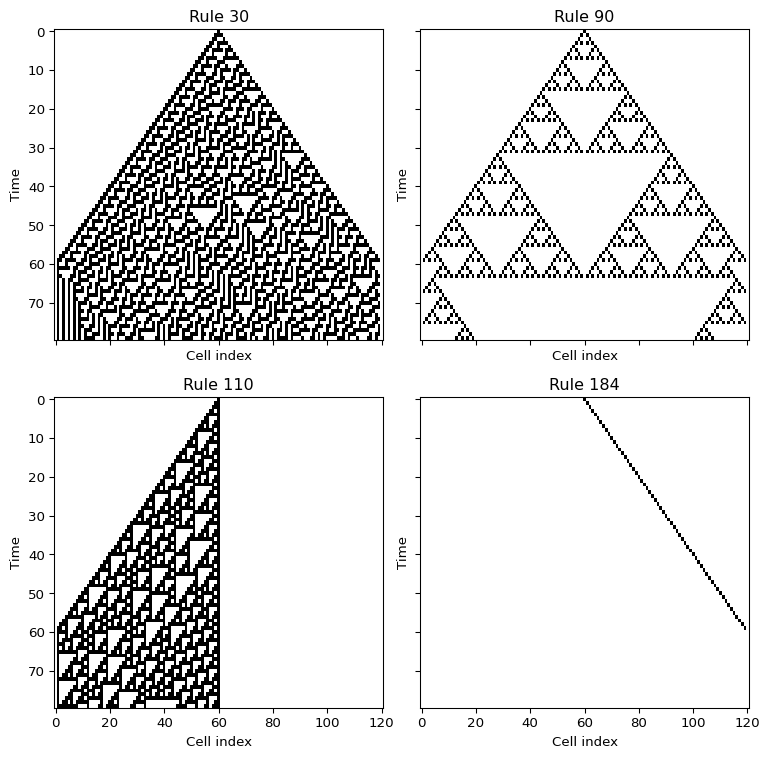

#| label: fig-ca-rule-grid
#| fig-cap: 'Four elementary rules started from the same single-seed initial condition.'
#| fig-width: 8
#| fig-height: 8
#| echo: false
import numpy as np
import matplotlib.pyplot as plt
from amlab.cellular_automata.cellular import apply_rule
def simulate_ca(initial_state, rule_number, steps):
rule_bin = np.array([int(bit) for bit in f"{rule_number:08b}"])
grid = np.zeros((steps, len(initial_state)), dtype=int)
grid[0] = initial_state
for t in range(1, steps):
grid[t] = apply_rule(grid[t - 1], rule_bin)
return grid
rules = [30, 90, 110, 184]
steps = 80
grid_size = 121
initial_state = np.zeros(grid_size, dtype=int)
initial_state[grid_size // 2] = 1
fig, axes = plt.subplots(2, 2, figsize=(8, 8), sharex=True, sharey=True)
for ax, rule_number in zip(axes.flat, rules):
grid = simulate_ca(initial_state, rule_number=rule_number, steps=steps)
ax.imshow(grid, cmap="binary", interpolation="nearest", aspect="auto")
ax.set_title(f"Rule {rule_number}")
ax.set_xlabel("Cell index")
ax.set_ylabel("Time")
plt.tight_layout()
plt.show()
plt.close()
```
## Build a reusable simulator
The core function should take three inputs: an initial row, a rule number, and the number of time steps.
```python
def simulate_ca(initial_state, rule_number, steps):
rule_bin = np.array([int(bit) for bit in f"{rule_number:08b}"])
grid = np.zeros((steps, len(initial_state)), dtype=int)
grid[0] = initial_state
for t in range(1, steps):
grid[t] = apply_rule(grid[t - 1], rule_bin)
return grid
```
With this wrapper in place, changing the experiment only means changing the inputs.
## Compare several rules
Rules `30`, `90`, `110`, and `184` are a good first comparison because they already show very different behavior.
- Rule 90 creates a highly regular, symmetric pattern.
- Rule 30 quickly becomes irregular and looks almost random.
- Rule 110 shows localized structures and interacting motifs.
- Rule 184 transports occupied sites to the right and is a useful bridge to traffic models.
```python
rules = [30, 90, 110, 184]
for rule_number in rules:
grid = simulate_ca(initial_state, rule_number, steps=80)
plt.figure(figsize=(6, 4))
plt.imshow(grid, cmap="binary", interpolation="nearest", aspect="auto")
plt.title(f"Rule {rule_number}")
plt.xlabel("Cell index")
plt.ylabel("Time")
plt.show()
```
## Change the initial condition
The second important experiment is to keep the rule fixed and change only the first row.
```python
rng = np.random.default_rng(7)
initial_state = (rng.random(121) < 0.5).astype(int)
grid = simulate_ca(initial_state, rule_number=110, steps=80)
plt.imshow(grid, cmap="binary", interpolation="nearest", aspect="auto")
plt.show()
```
This lets you separate two effects:
- what is imposed by the rule itself,
- and what is inherited from the initial data.
## Validation
Rule 184 moves each occupied cell one step to the right when the cell ahead is empty, so it conserves the number of 1s on a ring. Check it with the vectorized reference code, which uses periodic boundaries:
```{python}
g184 = simulate_eca(random_row(121, 0.4, seed=7), 184, 80, boundary="periodic")
print("Occupied cells over time (first 5 steps):", g184.sum(axis=1)[:5])
print("Conserved on the whole run:", bool((g184.sum(axis=1) == g184[0].sum()).all()))
```
With the fixed-zero edges of `apply_rule()`, occupied cells leave at the right edge, so the count drops. That is a property of the boundary, not of the rule.
## Optional extension: stochastic flips
You can add noise after each update. For example, flip each cell with a small probability `p_flip`.
```python
def noisy_update(state, rule_bin, p_flip=0.01, rng=None):
if rng is None:
rng = np.random.default_rng()
new_state = apply_rule(state, rule_bin)
flips = rng.random(len(new_state)) < p_flip
new_state[flips] = 1 - new_state[flips]
return new_state
```
That changes the model from a deterministic rule system into a stochastic one.
::: {.callout-note}
## Exercise
Optional. Run Rule 184 on a ring of 200 cells from a random row with density 0.2, for 500 steps, with `p_flip = 0` and with `p_flip = 0.01`. Plot the density of occupied cells over time. Use `step_eca(state, 184, boundary="periodic")` from `amlab.cellular_automata.elementary` in place of `apply_rule()`, so that the edges do not remove cells.
:::
::: {.callout-tip collapse="true"}
## Solution
Without noise the density stays at its initial value, because Rule 184 conserves the 1s. With noise it drifts to about 1/2: a flip turns a 1 into a 0 at rate `p_flip` times the density and a 0 into a 1 at rate `p_flip` times one minus the density, and the two rates balance at density 1/2.

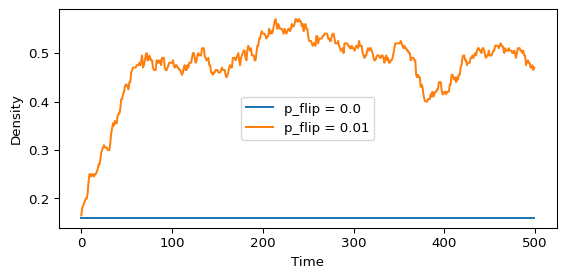

```{python}
from amlab.cellular_automata.elementary import step_eca
rng = np.random.default_rng(0)
fig, ax = plt.subplots(figsize=(6, 3))
for p_flip in (0.0, 0.01):
state = random_row(200, 0.2, seed=1)
density = []
for t in range(500):
state = step_eca(state, 184, boundary="periodic")
flips = rng.random(state.size) < p_flip
state[flips] = 1 - state[flips]
density.append(state.mean())
ax.plot(density, label=f"p_flip = {p_flip}")
ax.set_xlabel("Time")
ax.set_ylabel("Density")
ax.legend()
plt.tight_layout()
plt.show()
```
:::
## Interpretation
- Which rule preserves symmetry most clearly? Rule 90 is equal to its own reflection, so its diagram from a single seed is symmetric.
- Which rule seems most sensitive to tiny changes in the first row? Measure it with the Hamming distance, as on [Wolfram Classes](wolfram-classes.qmd).
- Which rule looks most like transport or directed motion? Rule 184 is the simplest traffic model: it is the Nagel-Schreckenberg model with maximum speed 1 and no random braking [@chowdhury2000statistical].
## Limitations
- A few runs of one lattice size do not prove a class assignment. Try other seeds and sizes.
- A random row with density $1/2$ is only one choice. Rule 184, for example, behaves differently above and below density $1/2$.
