The Random Walk

Module 3: Modelling with Randomness

Reading

Compulsory: (berg1993random?), Chapters 1 and 2.
Recommended: (britton2003essential?), Chapter 5 (Biological Motion).

A random walk is a sequence of positions in which each step is random and independent of the previous ones. Karl Pearson named the problem in a letter to Nature (pearson1905problem?). In the same year Einstein’s theory of Brownian motion described a suspended particle through many independent displacements (einstein1905bewegung?). In this module you use random walks to model diffusing molecules, heavy-tailed fluctuations and prices.

The one-dimensional lattice walk

Follow (berg1993random?). A particle starts at $x = 0$ at time $t = 0$ and obeys three rules:

Every $\tau$ seconds it steps a distance $\delta$ to the right or to the left.
It steps right with probability $p$ and left with probability $q = 1 - p$, independently of earlier steps.
Different particles move independently of each other.

After $n$ steps the position is a sum of independent steps $\xi_i \in \{+\delta, -\delta\}$:

\[ x(n) = \sum_{i=1}^{n} \xi_i . \tag{1}\]

Mean and variance

Each step has mean $(p - q)\delta$ and variance $4pq\,\delta^2$. Means and variances of independent variables add, so

\[ \langle x(n) \rangle = n (p - q)\,\delta, \qquad \operatorname{Var}[x(n)] = 4 n p q\, \delta^2 . \tag{2}\]

This agrees with the binomial derivation in (berg1993random?, Eqs. 1.15 to 1.20). For the unbiased walk, $p = q = 1/2$, the mean stays at zero and $\langle x^2(n) \rangle = n\delta^2$. The typical distance from the origin grows as $\sqrt{n}$, not as $n$.

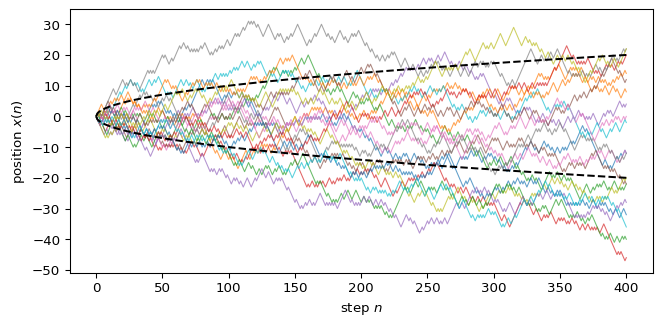

Figure 1: Twenty unbiased lattice walks with $\delta = 1$. The dashed curves are $\pm\sqrt{n}$, one standard deviation of $x(n)$.

Exercise

Simulate 5000 walkers for 400 steps with $p = 0.6$ and $\delta = 1$ using simulate_lattice_walk. Compare the sample mean and variance of $x(400)$ with Equation 2.

Solution

The theory gives $\langle x \rangle = 400 \cdot 0.2 = 80$ and $\operatorname{Var} = 4 \cdot 400 \cdot 0.6 \cdot 0.4 = 384$.

from amlab.random_walks import simulate_lattice_walk

rng = np.random.default_rng(0)
x = simulate_lattice_walk(5000, 400, p=0.6, rng=rng)
print(f"mean     {x[:, -1].mean():7.2f}  (theory 80)")
print(f"variance {x[:, -1].var():7.2f}  (theory 384)")

mean       79.92  (theory 80)
variance  394.05  (theory 384)

What the model leaves out

The lattice walk ignores inertia: successive steps are uncorrelated. (berg1993random?) estimates that a protein such as lysozyme in water takes about $10^{12}$ such steps per second, so the memory of each step is lost almost at once. Walks with memory or with long jumps behave differently; you meet one kind in Lévy flights.
