FitzHugh-Nagumo Model

Module 1: Low-Dimensional Dynamics

The FitzHugh-Nagumo model is a two-variable simplification of the Hodgkin-Huxley equations that keeps excitability and spiking (FitzHugh 1961; Nagumo, Arimoto, and Yoshizawa 1962). The version used in this course is

\[\begin{aligned} \epsilon \dot v &= f(v) - w + I_{\text{app}}, \\ \dot w &= v - \gamma w, \end{aligned} \tag{1}\]

with the cubic

\[ f(v) = v (1 - v)(v - \alpha), \qquad 0 < \alpha < 1 . \]

$v$ is the fast variable (membrane potential), $w$ the slow recovery variable, $I_{\text{app}}$ an applied current, and $\epsilon \ll 1$ sets the separation of time scales.

Nullclines and geometry

\[ \dot v = 0 \;\Longrightarrow\; w = f(v) + I_{\text{app}}, \qquad \dot w = 0 \;\Longrightarrow\; w = \frac{v}{\gamma}. \]

The cubic $v$-nullcline and the straight $w$-nullcline organize the flow. Away from the cubic, $\dot v$ is of order $1/\epsilon$, so trajectories move almost horizontally. Near the outer branches of the cubic they drift slowly (Strogatz 2024, sec. 7.5).

If the nullclines cross on an outer branch of the cubic, the fixed point is stable and the system is excitable (see Excitability).
If they cross on the middle branch, the fixed point is unstable and the system produces a relaxation oscillation.

Increasing $I_{\text{app}}$ shifts the cubic upwards and moves the crossing from the left branch to the middle branch.

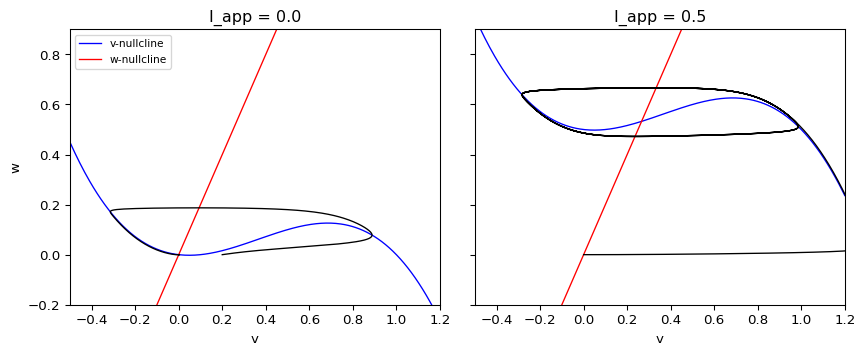

Figure 1: FitzHugh-Nagumo phase planes for alpha = 0.1, gamma = 0.5, epsilon = 0.01. Left: I_app = 0, excitable; one trajectory starting at v = 0.2 makes a single excursion. Right: I_app = 0.5, oscillatory; the trajectory settles on a limit cycle.

Implement the vector field

Exercise

Complete the FitzHugh-Nagumo vector field Equation 1. Remember to divide the $v$ equation by $\epsilon$.

def fitzhugh_nagumo(t, vw, i_app=0.5, gamma=0.5, alpha=0.1, epsilon=0.01):
    v, w = vw
    fv = # TODO: cubic nonlinearity
    dvdt = # TODO
    dwdt = # TODO
    return np.array([dvdt, dwdt])

Solution

def fitzhugh_nagumo(t, vw, i_app=0.5, gamma=0.5, alpha=0.1, epsilon=0.01):
    v, w = vw
    fv = v * (1 - v) * (v - alpha)
    dvdt = (fv - w + i_app) / epsilon
    dwdt = v - gamma * w
    return np.array([dvdt, dwdt])

This is amlab/odes_2d/fitzhugh_nagumo.py, which also contains an interactive animation.

Because $1/\epsilon = 100$, the problem is mildly stiff. Limit the step with max_step or use method="LSODA" so that the solver does not step over the fast jumps.

Time series

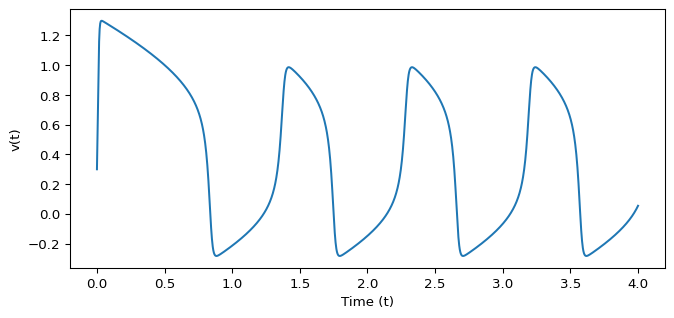

Follow the CDIMA pipeline again: solve trajectories, inspect the phase plane, compute nullclines, and then animate the motion. Figure 2 shows the fast variable $v(t)$ in the oscillatory regime.

The time trace and the phase plane explain the same phenomenon from two viewpoints.

Some initial conditions return directly to equilibrium.
Others produce a large transient spike before recovery.
In the oscillatory regime, every initial condition ends on the same limit cycle.

Interpret the parameters

Smaller $\epsilon$ makes the jumps faster relative to the slow drift.
$I_{\text{app}}$ moves the system between rest, excitability and repetitive firing.
$\gamma$ and $\alpha$ change the slope of the $w$-nullcline and the position of the cubic, and therefore where the nullclines intersect.

Exercise

For $\alpha = 0.1$, $\gamma = 0.5$, find the fixed point for $I_{\text{app}} = 0$ and show that it is the only one.

Solution

Fixed points satisfy $v/\gamma = f(v)$, that is $2v = v(1-v)(v - 0.1)$. One root is $v = 0$. The others solve $(1 - v)(v - 0.1) = 2$, i.e. $v^2 - 1.1v + 2.1 = 0$, whose discriminant $1.21 - 8.4$ is negative. So $(0, 0)$ is the only fixed point.

Exercise

Change the initial condition and $I_{\text{app}}$ and watch how the time series changes. Use $I_{\text{app}} = 0$ and $I_{\text{app}} = 0.5$, and start from $(v, w) = (0.05, 0)$ and $(0.3, 0)$. Connect what you see to the nullclines in Figure 1.

Solution

For $I_{\text{app}} = 0$ the fixed point $(0, 0)$ sits on the left branch of the cubic. The start at $v = 0.05$ lies left of the middle branch and decays straight back to rest. The start at $v = 0.3$ lies right of the middle branch, so $v$ jumps to the right branch, drifts up, jumps back and returns to rest: one spike. For $I_{\text{app}} = 0.5$ the crossing is on the middle branch, and both starts end on the same limit cycle with repeated spikes.

for i_app in [0.0, 0.5]:
    for v0 in [0.05, 0.3]:
        s = solve_ivp(fitzhugh_nagumo, (0, 4), [v0, 0.0], args=(i_app, gamma, alpha, eps), max_step=0.002)
        late = s.t > 2
        print(f"I_app = {i_app}, v0 = {v0}: max v = {s.y[0].max():.2f}, "
              f"range of v for t > 2 = {np.ptp(s.y[0][late]):.2f}")

I_app = 0.0, v0 = 0.05: max v = 0.05, range of v for t > 2 = 0.00
I_app = 0.0, v0 = 0.3: max v = 0.92, range of v for t > 2 = 0.00
I_app = 0.5, v0 = 0.05: max v = 1.30, range of v for t > 2 = 1.27
I_app = 0.5, v0 = 0.3: max v = 1.30, range of v for t > 2 = 1.27

FitzHugh, Richard. 1961. “Impulses and Physiological States in Theoretical Models of Nerve Membrane.” Biophysical Journal 1 (6): 445–66. https://doi.org/10.1016/S0006-3495(61)86902-6.

Nagumo, Jin-ichi, Suguru Arimoto, and Shuji Yoshizawa. 1962. “An Active Pulse Transmission Line Simulating Nerve Axon.” Proceedings of the IRE 50 (10): 2061–70. https://doi.org/10.1109/JRPROC.1962.288235.

Strogatz, Steven H. 2024. Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chemistry, and Engineering. Chapman; Hall/CRC.
