Network Concepts

Module 5: Complex Networks

Reading

Compulsory: (newman2003structure?), Sections 1 to 3.
Recommended: Newman (2018); Menczer, Fortunato, and Davis (2020).

A network (or graph) $G = (V, E)$ is a set of $N = |V|$ nodes and a set of $E = |E|$ edges that join pairs of nodes (newman2003structure?). In Module 1 you modelled an epidemic with ODEs that assume every individual meets every other one. A network drops that assumption: interactions happen only along edges.

Why networks?

Mean-field ODEs such as $dS/dt$, $dI/dt$, $dR/dt$ assume homogeneous mixing: every individual meets every other one with equal probability (Keeling and Rohani 2008). Real contact patterns are not homogeneous:

some nodes have 2 connections and others have 200;
a process can only travel along existing paths;
clusters can slow down or speed up spreading.

In Module 2 geometry decided who interacts with whom: metric distance, vision cones, neighbourhoods. Here a graph decides it. You keep the same simulation mindset, and local rules in space become local rules along edges. The themes stay the same: heterogeneity, hubs, robustness and emergent outcomes. On a network you can relate degree heterogeneity and centrality to robustness and to epidemic thresholds.

Adjacency matrix and degree

For an undirected, unweighted graph, the adjacency matrix has $A_{ij} = 1$ if nodes $i$ and $j$ share an edge and $A_{ij} = 0$ otherwise. The degree of node $i$ is

\[ k_i = \sum_{j} A_{ij}, \qquad \langle k \rangle = \frac{1}{N}\sum_i k_i = \frac{2E}{N}. \]

The degree distribution $p_k$ is the fraction of nodes with degree $k$. Its second moment $\langle k^2 \rangle = \sum_k k^2 p_k$ appears in every result of this module: percolation, cascades and epidemic thresholds all depend on how broad $p_k$ is (newman2003structure?). Many real networks have right-skewed degree distributions, sometimes close to a power law $p_k \sim k^{-\gamma}$ with $2 < \gamma < 3$ (newman2003structure?).

Paths and the small-world effect

A path is a sequence of edges that joins two nodes. The distance $d_{ij}$ is the length of the shortest path. The average path length $\ell$ averages $d_{ij}$ over all pairs, and the diameter is the largest $d_{ij}$. In many real networks $\ell$ is small and grows slowly (about logarithmically) with $N$. This is the small-world effect (newman2003structure?; Watts and Strogatz 1998).

Clustering

The local clustering coefficient of node $i$ is

\[ C_i = \frac{\text{number of edges among the neighbours of } i}{k_i (k_i - 1)/2}. \]

It measures how often two neighbours of $i$ are also neighbours of each other. Social networks tend to have much higher clustering than a random graph with the same $N$ and $E$ (Watts and Strogatz 1998; newman2003structure?).

Centrality

Centrality measures rank nodes by importance. Each one encodes a different idea of “important” (Newman 2018):

Degree centrality: $k_i / (N-1)$. Many direct contacts.
Closeness centrality: $(N-1) / \sum_{j} d_{ij}$. Short distances to everyone else (Sabidussi 1966).
Betweenness centrality: $b_v = \sum_{s \neq v \neq t} \sigma_{st}(v) / \sigma_{st}$, where $\sigma_{st}$ counts shortest paths from $s$ to $t$ and $\sigma_{st}(v)$ counts those that pass through $v$ (Freeman 1977). You will use betweenness as the “load” of a node in the cascade lab.
PageRank: stationary distribution of a random walk with random restarts, used for directed graphs (Page et al. 1999).

Communities

A community is a group of nodes with many edges inside the group and few edges to the rest of the network (girvan2002community?). A common quality score is the modularity

\[ Q = \frac{1}{2E}\sum_{ij}\left(A_{ij} - \frac{k_i k_j}{2E}\right)\delta(c_i, c_j), \]

which compares the edges inside communities with the number expected in a random graph with the same degrees (Newman 2018). Here $c_i$ is the community of node $i$.

Worked example: the karate club

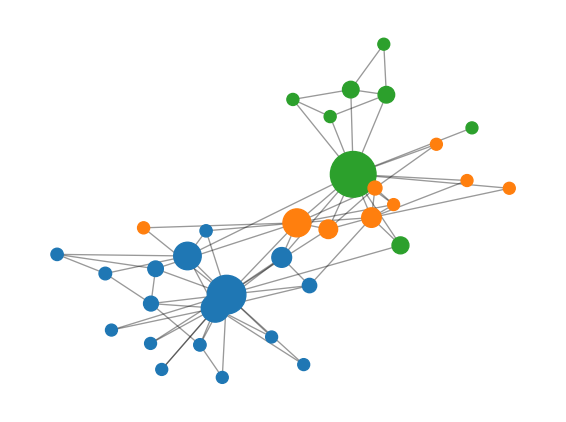

Figure 1 shows Zachary’s karate club, a social network of 34 club members (zachary1977information?). Node size is proportional to betweenness and colours show the communities found by greedy modularity maximization.

Figure 1: Zachary’s karate club. Node size is proportional to betweenness centrality; colours are communities found by greedy modularity maximization.

N = 34, E = 78, <k> = 4.59
average clustering = 0.571
average path length = 2.408
3 communities, Q = 0.411

Exercise

Nodes 0 and 33 are the instructor and the club administrator. Predict their rank by degree and by betweenness. Then check with nx.degree_centrality and nx.betweenness_centrality.

Solution

Nodes 0 and 33 take the first two places in both rankings. Node 33 has the largest degree, and node 0 has the largest betweenness because many shortest paths between the two groups pass through it.

bc = nx.betweenness_centrality(G)
dc = nx.degree_centrality(G)
print(sorted(bc, key=bc.get, reverse=True)[:3])
print(sorted(dc, key=dc.get, reverse=True)[:3])

The toolkit pages, from NetworkX Basics to Centrality in NetworkX, show how to compute every quantity on this page.

References

Freeman, Linton C. 1977. “A Set of Measures of Centrality Based on Betweenness.” Sociometry 40 (1): 35–41. https://doi.org/10.2307/3033543.

Keeling, Matt J., and Pejman Rohani. 2008. Modeling Infectious Diseases in Humans and Animals. Princeton University Press.

Menczer, Filippo, Santo Fortunato, and Clayton A. Davis. 2020. A First Course in Network Science. Cambridge University Press.

Newman, Mark. 2018. Networks. 2nd ed. Oxford University Press.

Page, Lawrence, Sergey Brin, Rajeev Motwani, and Terry Winograd. 1999. “The PageRank Citation Ranking: Bringing Order to the Web.” 1999-66. Stanford InfoLab. http://ilpubs.stanford.edu:8090/422/.

Sabidussi, Gert. 1966. “The Centrality Index of a Graph.” Psychometrika 31 (4): 581–603. https://doi.org/10.1007/BF02289527.

Watts, Duncan J., and Steven H. Strogatz. 1998. “Collective Dynamics of ’Small-World’ Networks.” Nature 393 (6684): 440–42. https://doi.org/10.1038/30918.
