CDIMA: Parameter Map

Module 1: Low-Dimensional Dynamics

You now build a clickable map of the $(a, b)$ parameter plane of the CDIMA model: clicking a point shows the phase portrait for those parameters. You also locate the Hopf curve from simulations alone and compare it with $b_c = 3a/5 - 25/a$ (Strogatz 2024, sec. 8.3).

Prediction

Exercise

Sketch the curve $b = 3a/5 - 25/a$ for $2 \le a \le 20$. In which part of the plane do you expect oscillations?

Solution

The curve is negative for $a < \sqrt{125/3} \approx 6.45$, crosses $b = 0$ there and then rises, reaching $b = 3.5$ at $a = 10$ and $b = 10.75$ at $a = 20$. The fixed point is unstable below the curve, so you expect oscillations in the region $0 < b < 3a/5 - 25/a$, which only exists for $a > 6.45$.

Implementation: the clickable map

The map has two panels. The left one shows the $(a, b)$ plane with the theoretical Hopf curve. A click there sets the parameters and redraws the right panel: nullclines, the fixed point and a few trajectories. The core of the code is the click callback.

Exercise

Complete the click callback. Assume fig, ax_map, ax_phase, cdima and solve_ivp are already defined.

def on_click(event):
    if event.inaxes == ax_map:
        a, b = event.xdata, event.ydata
        # TODO: clear ax_phase
        # TODO: draw nullclines y = (a - x)(1 + x^2)/(4x) and y = 1 + x^2
        # TODO: integrate and plot trajectories from a few initial conditions
        # TODO: mark the fixed point (a/5, 1 + (a/5)^2)
        fig.canvas.draw_idle()

fig.canvas.mpl_connect("button_press_event", on_click)

Solution

def on_click(event):
    if event.inaxes == ax_map and event.xdata > 0 and event.ydata > 0:
        a, b = event.xdata, event.ydata
        ax_phase.clear()
        x_star, y_star = a / 5, 1 + (a / 5) ** 2
        xmax, ymax = 1.6 * x_star + 1, 1.6 * y_star + 1
        xg = np.linspace(0.01, xmax, 300)
        ax_phase.plot(xg, (a - xg) * (1 + xg**2) / (4 * xg), "b", lw=1)
        ax_phase.plot(xg, 1 + xg**2, "r", lw=1)
        for x0, y0 in [(0.1, 0.1), (0.9 * xmax, 0.1), (x_star + 0.05, y_star)]:
            sol = solve_ivp(cdima, (0, 60), [x0, y0], args=(a, b),
                            t_eval=np.linspace(0, 60, 3000))
            ax_phase.plot(sol.y[0], sol.y[1], lw=1)
        ax_phase.plot(x_star, y_star, "ko")
        ax_phase.set_xlim(0, xmax)
        ax_phase.set_ylim(0, ymax)
        ax_phase.set_title(f"a = {a:.2f}, b = {b:.2f}")
        fig.canvas.draw_idle()

fig.canvas.mpl_connect("button_press_event", on_click)

run_parameter_map in amlab/odes_2d/cdima_analysis.py is a complete version. Run it locally (it needs an interactive Matplotlib window):

from amlab.odes_2d.cdima_analysis import run_parameter_map

run_parameter_map()

The older script amlab/odes_2d/cdima.py also has a clickable stability diagram, combined with the animation from Animations and Interactivity.

Figure 1 shows what the right panel displays for four points of the map.

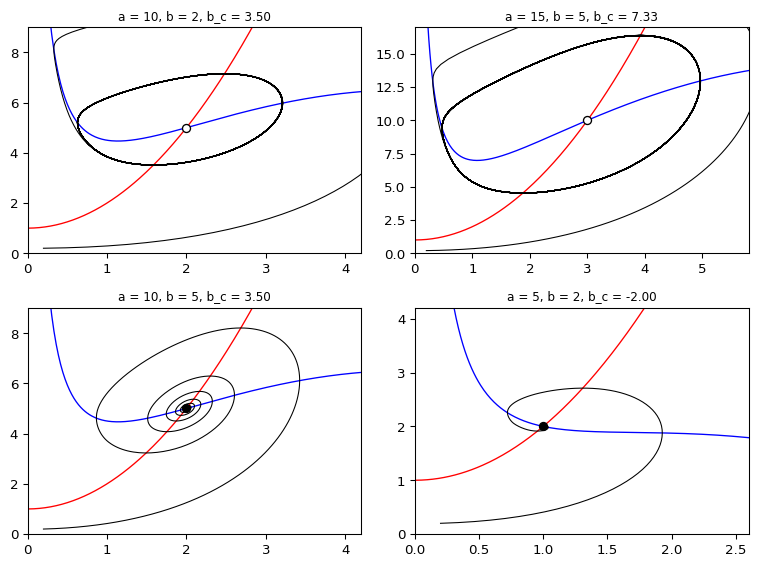

Figure 1: CDIMA phase portraits at four points of the (a, b) plane. Top: oscillation (b below the Hopf curve). Bottom: stable fixed point (b above it). Blue: x-nullcline; red: y-nullcline.

Validation: the Hopf curve from simulations

Without using the formula, decide for each $a$ the largest $b$ at which the long-run solution still oscillates. Simulate from a point near the fixed point, discard the transient and measure the amplitude of $x(t)$.

from amlab.odes_2d.cdima_analysis import limit_cycle_amplitude


def oscillates(a, b, threshold=0.05):
    return limit_cycle_amplitude(a, b, t_end=200.0) > threshold


def hopf_by_simulation(a, b_lo=0.05, b_hi=10.0, steps=10):
    for _ in range(steps):
        b_mid = 0.5 * (b_lo + b_hi)
        if oscillates(a, b_mid):
            b_lo = b_mid
        else:
            b_hi = b_mid
    return 0.5 * (b_lo + b_hi)


a_vals = [8.0, 10.0, 12.0, 15.0]
b_sim = [hopf_by_simulation(a) for a in a_vals]
for a, b in zip(a_vals, b_sim):
    print(f"a = {a}: simulation {b:.3f}, theory {hopf_b(a):.3f}")

aa = np.linspace(6.5, 16, 200)
fig, ax = plt.subplots(figsize=(6, 3.5))
ax.plot(aa, hopf_b(aa), "k--", label="theory")
ax.plot(a_vals, b_sim, "o", label="simulation")
ax.set_xlabel("a")
ax.set_ylabel("b")
ax.legend()
ax.grid(alpha=0.3)
plt.tight_layout()
plt.show()

a = 8.0: simulation 1.639, theory 1.675
a = 10.0: simulation 3.465, theory 3.500
a = 12.0: simulation 5.078, theory 5.117
a = 15.0: simulation 7.284, theory 7.333

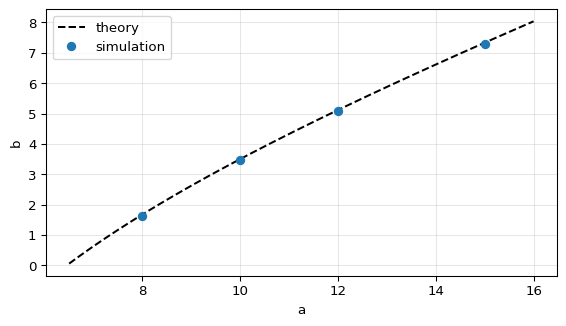

Figure 2: Hopf curve of the CDIMA model. Line: theory b_c = 3a/5 - 25/a. Dots: b at which the simulated oscillation amplitude drops below 0.05, found by bisection.

The simulated boundary lies slightly below the theoretical one. Near $b_c$ the amplitude grows like $\sqrt{b_c - b}$, so an oscillation with amplitude below the threshold 0.05 is counted as “no oscillation”. Lower the threshold and increase t_end to get closer to the theory.

Experiment and interpretation

Exercise

Click points close to the Hopf curve. How does the size of the limit cycle change?
For $a < \sqrt{125/3} \approx 6.45$ the curve is below $b = 0$. Can you find oscillations there?

Solution

The limit cycle shrinks to the fixed point as you approach the curve from below; its amplitude grows like $\sqrt{b_c - b}$, as noted in the validation above. For $a < 6.45$ you find no sustained oscillations: $b_c < 0$, so every $b > 0$ lies above the curve and the fixed point is stable.

The map turns the formula into a picture: one inequality between two parameters decides whether the reaction oscillates.

Exit question

Exercise

A student finds a limit cycle in a simulation at $a = 10$, $b = 3.6$. The theory says the fixed point is stable for $b > 3.5$. Which is wrong?

Solution

Probably neither is wrong yet, but the claim needs checking. For $b = 3.6$ the eigenvalues have real part $-0.02$, so the decay is slow: a trajectory can look like a limit cycle for a long time. Integrate longer and measure the amplitude at late times. If a cycle truly persisted above $b_c$, the bifurcation would be subcritical, which the amplitude measurements in Hopf Bifurcation do not support.

Session 9 studies excitable systems.

References

Strogatz, Steven H. 2024. Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chemistry, and Engineering. Chapman; Hall/CRC.
