Budworm: Integration and Time Series

Module 1: Low-Dimensional Dynamics

You now integrate the budworm model from Budworm: the Model in Code in time (Strogatz 2024, sec. 3.7; Virtanen et al. 2020).

Implementation: numerical integration

The app on the next page calls this function repeatedly, each time continuing from the last state.

Exercise

Create a function that evolves the system forward in time and appends the result to existing arrays.

Function name: evolve_spruce_budworm
Inputs: t (time array), x (population array), r, k, t_eval (duration to evolve).
Use solve_ivp with method="RK45", the adaptive step size Runge-Kutta method, starting from the last values of the arrays.
Concatenate the new results with np.concatenate and clip negative values with np.clip.
Return the updated t and x.

def evolve_spruce_budworm(t: np.ndarray, x: np.ndarray, r=0.5, k=10, t_eval=50):
    """Don't forget the docstring and type hints"""
    t_span = (t[-1], t[-1] + t_eval)
    t_points = # TODO: evaluation points along t_span, use np.linspace

    solution = solve_ivp(
        fun=spruce_budworm,
        t_span=t_span,
        y0=[x[-1]],
        t_eval=t_points,
        args=(r, k),
        method="RK45",
    )
    # TODO: concatenate solution.t and solution.y[0] to t and x
    # TODO: ensure non-negative population with np.clip
    return t, x

args passes r and k to your ODE function.
The initial condition is [x[-1]], the last population value, as a list.

Solution

def evolve_spruce_budworm(t, x, r=0.5, k=10, t_eval=50):
    """Evolve the budworm ODE for t_eval time units and append the result."""
    t_span = (t[-1], t[-1] + t_eval)
    t_points = np.linspace(t[-1], t[-1] + t_eval, 1000)
    solution = solve_ivp(spruce_budworm, t_span, [x[-1]], args=(r, k),
                         t_eval=t_points, method="RK45")
    t = np.concatenate((t, solution.t))
    x = np.clip(np.concatenate((x, solution.y[0])), 0, None)
    return t, x

Implementation: time series plot

This plot shows how the population evolves from the initial condition.

Exercise

Create plot_spruce_budworm(t, x) that plots population against time in green, with the y axis starting at 0 (populations cannot be negative), a grid, labels and a title. Return the figure and axes. Figure 1 shows an example.

Solution

def plot_spruce_budworm(t, x):
    """Plot the budworm population against time."""
    fig, ax = plt.subplots(figsize=(8, 4))
    ax.plot(t, x, color="green")
    ax.set_ylim(bottom=0)
    ax.set_xlabel("Time")
    ax.set_ylabel("Budworm population")
    ax.set_title("Spruce budworm population dynamics")
    ax.grid()
    return fig, ax

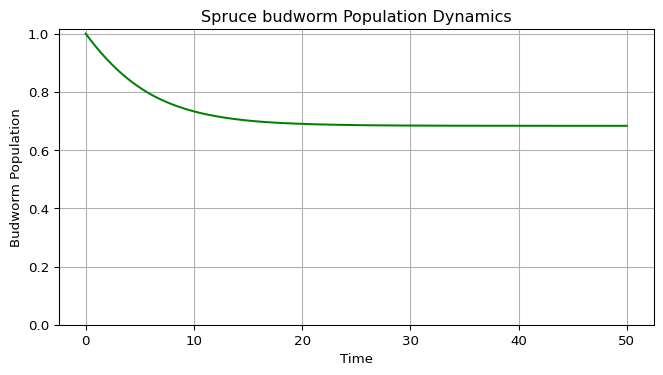

Figure 1: Budworm population for r = 0.5, k = 10, starting at x0 = 1, integrated with RK45 in five blocks of 10 time units.

Validation

The trajectory in Figure 1 starts at $x_0 = 1$, below the threshold $x = 2$, so it should settle at the refuge $x^* \approx 0.683$.

print(f"x at t = {t[-1]:.0f}: {x[-1]:.3f}")

x at t = 50: 0.683

Experiment

Exercise

Once your functions work, explore these questions.

Multiple equilibria. For $r = 0.5$ and $k = 10$, how many equilibria exist? Which are stable?
Bistability. Start from $x_0 = 1$ and $x_0 = 8$. Do they converge to the same equilibrium?
Outbreak dynamics. Start from a small population, $x_0 < 2$, with a large carrying capacity, $k > 10$. Does an outbreak happen?
Critical slowing down. Start at $x_0 = 2.01$. How long does the population take to leave the neighbourhood of $x = 2$? Compare with the time scale $1/|f'(2)| \approx 7$ and with the rate of change far from equilibrium.
Hysteresis. Increase $k$ slowly from 5 to 15 and back to 5 with $r = 0.56$. Does the population return along the same path?
Parameter space. Draw a diagram of the number of equilibria as a function of $r$ and $k$. Where do the bifurcations occur?

Solution

There are four equilibria: $x = 0$ (unstable), $x_a \approx 0.68$ (stable), $x_b = 2$ (unstable) and $x_c \approx 7.32$ (stable).
No. $x_0 = 1$ goes to the refuge $x_a$ and $x_0 = 8$ goes to the outbreak level $x_c$. The unstable point $x_b = 2$ separates the two basins.
It depends on how small. For $r = 0.5$ the threshold $x_b$ moves down as $k$ grows: $x_b \approx 1.79$ for $k = 12$ and $x_b \approx 1.63$ for $k = 15$. So $x_0 = 1.7$ stays at the refuge for $k = 12$ but triggers an outbreak for $k = 15$. A very small population, such as $x_0 = 1$, still stays at the refuge.
The population needs about 27 time units to move from 2.01 to 2.5, roughly four times $1/f'(2) \approx 7$, because it must grow by a factor of 50 at rate $f'(2) = 0.14$: $\ln(50)/0.14 \approx 28$. Far from equilibrium, $|dx/dt|$ is much larger and the population moves in a few time units.
No. The population jumps up near $k \approx 9.94$ and only jumps down near $k \approx 6.45$. Hysteresis shows the loop.
The number of positive equilibria is three inside a cusp-shaped region of the $(k, r)$ plane and one outside. The two boundary curves are saddle-node bifurcations; Hysteresis plots them with bifurcation_curves from amlab/odes_1d/budworm_analysis.py.

from scipy.integrate import solve_ivp

from amlab.odes_1d.spruce_budworm import spruce_budworm

sol = solve_ivp(spruce_budworm, (0, 100), [2.01], args=(0.5, 10.0),
                dense_output=True, rtol=1e-9, atol=1e-12)
t_fine = np.linspace(0, 100, 10001)
t_leave = t_fine[np.argmax(sol.sol(t_fine)[0] > 2.5)]
print(f"time to reach x = 2.5 from x = 2.01: {t_leave:.1f}")
for x0, k in [(1.0, 15.0), (1.7, 12.0), (1.7, 15.0)]:
    end = solve_ivp(spruce_budworm, (0, 300), [x0], args=(0.5, k), rtol=1e-9).y[0, -1]
    print(f"x0 = {x0}, k = {k}: x(300) = {end:.2f}")

time to reach x = 2.5 from x = 2.01: 27.2
x0 = 1.0, k = 15.0: x(300) = 0.73
x0 = 1.7, k = 12.0: x(300) = 0.70
x0 = 1.7, k = 15.0: x(300) = 12.64

Interpretation and limitations

Relate every result to the rate plot: the sign of $dx/dt$ decides the direction of motion. The model has constant parameters, so it cannot produce repeated outbreaks; see Budworm and Forest: Fast and Slow.

Strogatz, Steven H. 2024. Nonlinear Dynamics and Chaos: With Applications to Physics, Biology, Chemistry, and Engineering. Chapman; Hall/CRC.

Virtanen, Pauli, Ralf Gommers, Travis E. Oliphant, Matt Haberland, Tyler Reddy, David Cournapeau, Evgeni Burovski, et al. 2020. “SciPy 1.0: Fundamental Algorithms for Scientific Computing in Python.” Nature Methods 17 (3): 261–72. https://doi.org/10.1038/s41592-019-0686-2.
